C5929 Datasheet – Vcbo=1550V, NPN Transistor – Panasonic

Part Number : C5929

Description : NPN Triple Diffused Mesa ( Horizontal Deflection Output )

Type : Silicon Transistor

Package : TOP-3D Type

Manufactures : Panasonic, Matushita Electronics

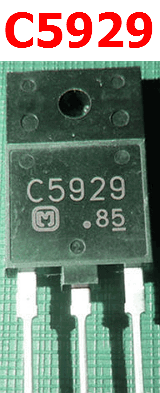

Image :
C5929 datasheet transistor

( 2SC5929, Marking : C5929 )

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1550 V
2. Collector to Emitter Voltage : Vceo = 600 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic =12 A
5. Total Dissipation : Pc = 50 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C

Equivalent circuit

C5929 circuit

C5929 Datasheet
