C828A Datasheet PDF – 45V, 0.1A, NPN Transistor, 2SC828A

Part Number : C828A, 2SC828A

Function : 45V, 100mA, NPN Transistor

Package : TO-92 Type

Manufacturers : Toshiba

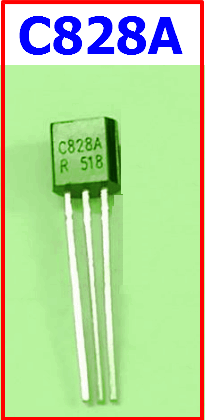

C828A transistor

Description :

This is 45V, 100mA, NPN Silicon Epitaxial Planar Transistor.

Features :

1. Large DC current gain hFE

Pinouts :
C828 datasheet pinout

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 45 V

2. Collector to Emitter Voltage : Vceo = 45 V

3. Emitter to Base Voltage : Vebo = 7 V

4. Collector Current : Ic = 50 mA

5. Collector Dissipation : Pc = 400 mW

6. Junction Temperature : Tj = 150°C

7. Storage Temperature : Tsg = -55 ~ +150°C

C828A Transistor
2SC828A specs

Applications :

1. Small Signal Amplifier

2. Switching and AF amplifier

C828A Datasheet PDF

2sc828 pdf



Other data sheets within the file : 2SC828, SC828
