CLAA070LC0HCW Datasheet PDF – 7 inch Color TFT-LCD Module

Part Number : CLAA070LC0HCW

Function : 7″ Color TFT-LCD(Thin Film Transistor Liquid Crystal Display) Module

Display Area (mm) : 152.4(W) x 91.44(H)

Manufacturers : Chunghwa Picture Tubes ( CPT Confidential )

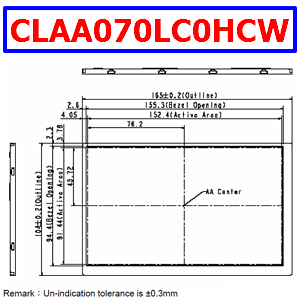

CLAA070LC0HCW datasheet

Description

CLAA070LC0HCW is 7″ color TFT-LCD(Thin Film Transistor Liquid Crystal Display)module composed of LCD panel,driver ICs,control circuit,and LED backlight. The 7.0″screen produces a high resolution image that is composed of 800×480 pixel elements in a stripe arrangement.Display 262K colors by 6 Bit R.G.B signal input.

General specifications

1. Display Area (mm) : 152.4(W)×91.44(H)
2. Number of Pixels : 800(H)×3(RGB)×480(V)
3. Pixel Pitch (mm) : 0.1905(H)×0.1905(V)
4. Color Pixel Arrangement : RGB vertical stripe
5. Display Mode : Normally white
6. Number of colors : 262,144
7. Viewing Direction : 6 o´clock
8. Response Time (Tr+Tf) : 20ms
9. Brightness(cd/m2) : 220nit(typ)
10. Viewing Angle(BL on,CR≧10) : 140 degree(H),110degree(V)
11. Electrical Interface(data) : TTL
12. Power consumption(W) : 2.0W(Typ)
13. Outline Dimension(in mm) : 165(W)×104(H)×5(D)
14. Weight(g) : 114.5g(Typ)
15. BL unit : LED
16. Surface Treament : Anti-Glare, Hardness:3H
