CM150DY-24A Datasheet – 1200V, 150A, IGBT – Mitsubishi

Part Number : CM150DY-24A

Description : IGBT Module, High Power Switching USE

Package : Module Type

Manufactures : Mitsubishi Electric

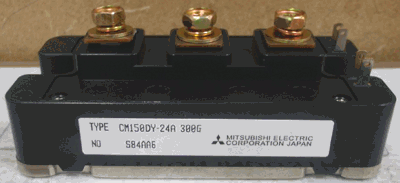

Image :

CM150DY-24A

Features

1. Ic = 150A
2. Vces = 1200V
3. Insulated Type
4. 2-elements in a pack

Absolute maximum ratings

1. Collector-emitter voltage : Vces = 1200 V
2. Collector current : Ic = 150 A
3. Maximum collector dissipation ( Tc=25°C ) : Pc = 960 W

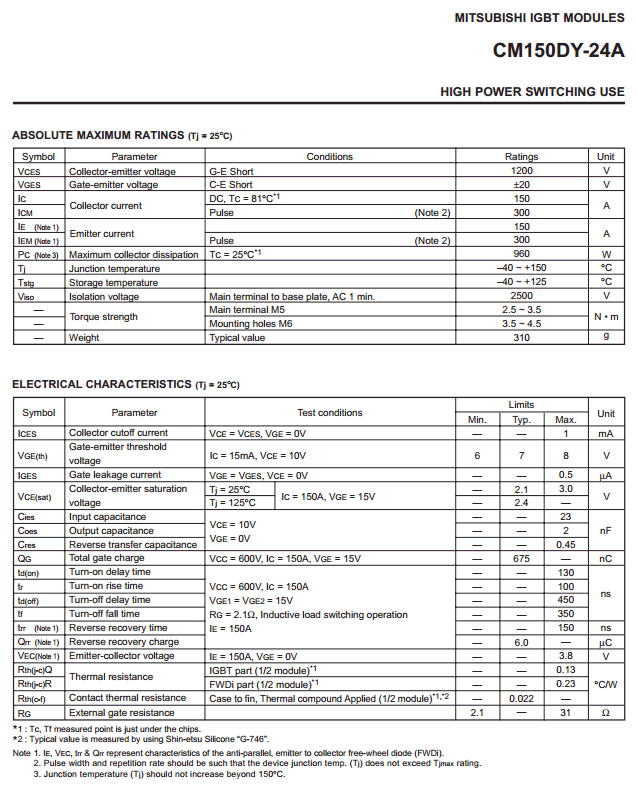

CM150DY-24A Datasheet
Application :

1. High Power Switching Use
2. AC drive inverter & Servo control, etc

CM150DY-24A Datasheet



CM150DY-24A pdf
