CM150DY-24A Datasheet PDF – 150A, 1200V, Dual IGBT

Part Number : CM150DY-24A

Function : Dual IGBT A-Series Module / 150 Amperes / 1200 Volts

Package : Module Type

Manufactures : MITSUBISHI, Powerex

Image :

CM150DY-24A


Description :

This is 150A, 1200V, insulated-gate bipolar transistor.

Powerex IGBTMOD Modules are designed for use in switching applications. Each module
consists of two IGBT Transistors in a half-bridge configuration with each transistor having a reverse
connected super-fast recovery free-wheel diode. All components and interconnects are isolated
from the heat sinking baseplate, offering simplified system assembly and thermal management.

Features :

1. Low Drive Power
2. Low V CE(sat)
3. Discrete Super-Fast Recovery Free-Wheel Diode
4. Isolated Baseplate for Easy Heat Sinking

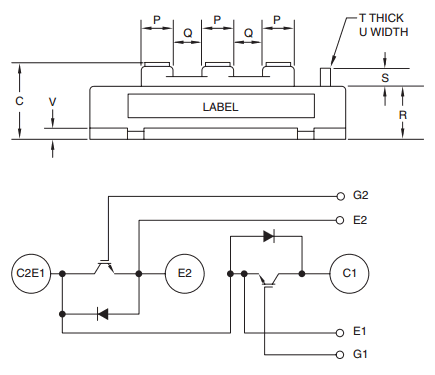

Pinouts :

CM150DY-24A Datasheet

Applications :

1. AC Motor Control
2. UPS
3. Battery Powered Supplies





CM150DY-24A Datasheet Powerex

CM150DY-24A pdf
