CSR8635 Datasheet PDF – BlueCore Single Chip Audio ROM

Part Number : CSR8635

Description : BlueCore Single Chip Audio Rom

Manufactures : CSR

Package : 68-pin QFN, 8x8mm, 0.4mm pitch

Image :

CSR8635 image

Description :

CSR’s BlueCore CSR8635 QFN is a single-chip Bluetooth ROM audio solution for rapid evaluation and development of Bluetooth ROM stereo applications. BlueCore CSR8635 QFN consumer audio platform for wired and wireless applications using the QFN package integrates an ultra-low power DSP and application processor with embedded flash memory, a high performance stereo codec, a power management subsystem andLED drivers. The CSR configuration tools and the development kit provide a flexible and powerful development platform to design advanced and high-quality Bluetooth stereo products using BlueCore CSR8635 QFN single-chip Bluetooth audio solution.

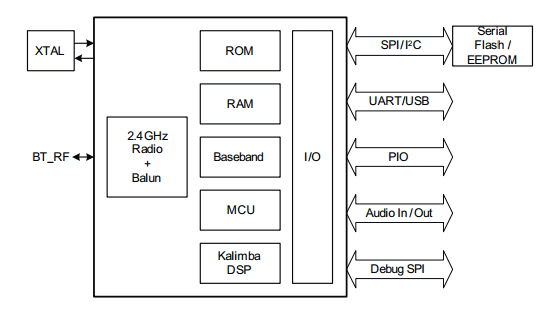

Block Diagram

CSR8635 schematic

Features :

1. Bluetooth 4.1

2. HFP1.6, A2DP1.2 and  AVRCP1.4

3. HD voice (wideband speech)

4. Advanced Multi-point (2xHFP, 2xA2DP)

5. Wired Audio (Stereo Line-in)

6. Music Enhancements (Multi-band EQ)

7. iOS battery status monitor

8. Smart Apps support (GAIA)

9. Multi-Language programmable audio prompts

10. Configurable LED drivers



Pinouts :

CSR8635 datasheet

Applications :

1. Stereo speakers

2. Speakerphones

3. 1-mic stereo headset or headphones

CSR8635 Datasheet PDF
