D1024 Datasheet PDF – 100V, 8A, Darlington NPN Transistor

Part Number : D1024

Function : 8A, 100V, NPN Darlington Transistor

Package : TO-220 Type

Manufacturers : Shindengen

Pinouts :

D1024 datasheet

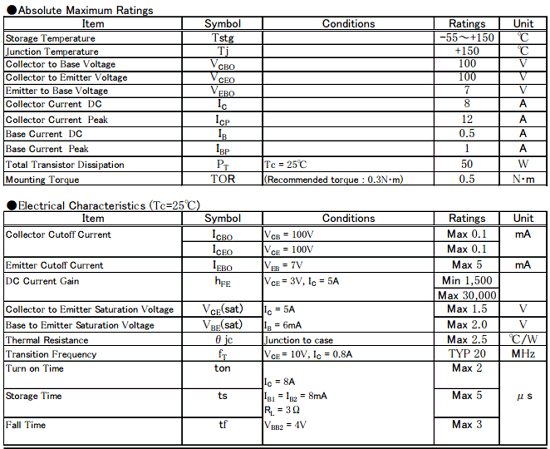

Absolute maximum ratings

1. Collector to Base Voltage : Vcbo = 100 V
2. Collector to Emitter Voltage : Vceo = 100 V
3. Emitter to Base Voltage : Vebo = 7 V
4. Collector Current : Ic = 8 A
6. Base Current : Ib = 0.5 A
7. Total Dissipation : Pt = 50 W ( Ta = 25°C )
8. Junction Temperature : Tj = 150°C
9. Storage Temperatue : Tsg = 55 ~ + 150°C

Other data sheets within the file : 2SD1024, T8L10
