Part Number : D1197

Function : Epitaxial Planar Silicon Darlington NPN Transistor

Package : TO-3PB Type

Manufacturers : SANYO ( Panasonic )

Pinouts :

D1197 datasheet

Description :

1. High DC current gain.
2. Large current capacity and wide ASO.
3. Low saturation voltage.

Applications

1. Motor drivers, printer hammer drivers, relay drivers, voltage regulator control.

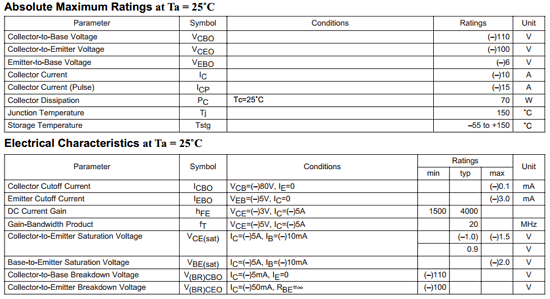

Absolute maximum ratings ( Ta = 25°C )

1. Collector-to-Base Voltage : VCBO = 110 V
2. Collector-to-Emitter Voltage : VCEO = 100 V
3. Emitter-to-Base Voltage : VEBO = 6 V
4. Collector Current : IC = 10 A
5. Collector Current (Pulse) : ICP = 15 A
6. Collector Dissipation : PC = 70 W ( Tc = 25°C )
7. Junction Temperature : Tj = 150°C
8. Storage Temperature : Tstg = –55 to +150°C

Applications

1. Motor drivers, printer hammer drivers
2. Relay drivers, voltage regulator control.



Other data sheets within the file : 2SB887, 2SD1197, B887
