D1273 Datasheet PDF – 60V, 3A, NPN Transistor – Panasonic

This is one of the transistor types.

Part Number : D1273, 2SD1273, 2SD1273A, D1273

Function : NPN Transistor ( Vcbo = 80V, Vceo = 60V, Vebo = 6V )

Package : TO-220 Type

Manufactures : Panasonic Semiconductor

D1273 Transistor panasonic



Description :

This is 60V, 3A, Silicon NPN triple diffusion planar type Transistor.



Features :

1. High foward current transfer ratio hFE

2. Satisfactory linearity of foward current transfer ratio hFE

3. Full-pack package which can be installed to the heat sink with one screw

4. For power amplification with high forward current transfer ratio, Complementary to 2SB1299

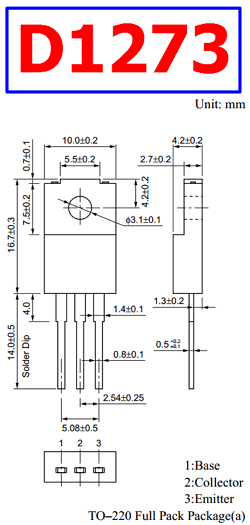

Pinout

D1273 datasheet pinout

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 80 V
2. Collector to Emitter Voltage : Vceo = 60 V
3. Emitter to Base Voltage : Vebo = 6 V
4. Collector Current : Ic =3 A
5. Total Dissipation : Pc = 2 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperature : Tsg = -55 ~ +150°C

D1273 Datasheet
