D1616 Transistor – 50V, 1A, NPN, 2SD1616 ( Datasheet PDF )

Part Number: D1616, 2SD1616, 2SD1616A

Function: 50V, 1A, NPN Transistor

Package: TO-92 Type

Manufacturer: NEC (Renesas Technology)

Image and Pinouts:

D1616 datasheet



Description:

This is 50V, 1A, NPN Silicon Transistor. The D1616, 2SD1616, 2SD1616A are designed for use in driver and output stages of AF amplifier, general purpose application.



Features:

1. Low Collector Saturation Voltage

2. High Break Down Voltage: Vceo = 50 V

3. High Total Power Dissipation : Pt = 0.75W (Ta = 25°C)

4. Complementary to the NEC 2SB1116/2SB1116A PNP Transistor.



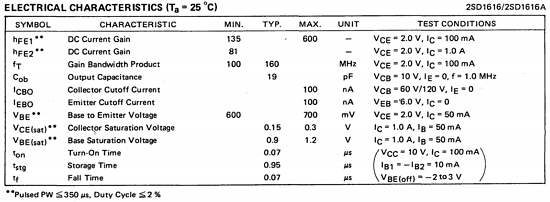

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 60 V

2. Collector to Emitter Voltage: Vceo = 50 V

3. Emitter to Base Voltage: Vebo = 6 V

4. Collector Current: Ic = 1 A

5. Junction Temperature: Tj = 150°C

6. Storage Temperature: Tsg = -55 ~ +150°C



Other data sheets are available within the file: 2SD1616, 2SD1616A, D1616A
