D1827 Datasheet PDF – Vceo=60V, Silicon NPN Transistor – Sanyo

Part Number : D1827

Function : Epitaxial Planar Silicon Darlington Transistor

Package : TO-220ML Type

Manufacturers : SANYO ( Panasonic )

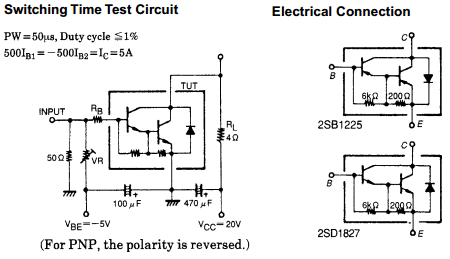

Pinouts :

D1827 datasheet



Description :

1. High DC current gain.
2. Large current capacity and wide ASO.
3. Low saturation voltage.
4. Micaless package facilitating mounting.

Absolute Maximum Ratings at Ta = 25°C

1. Collector-to-Base Voltage : VCBO = 70 V
2. Collector-to-Emitter Voltage : VCEO = 60 V
3. Emitter-to-Base Voltage : VEBO = 6 V
4. Collector Current : IC = 10 A
5. Collector Current (Pulse) : ICP = 15 A
6. Collector Dissipation : Pc = 2.0 W
7. Collector Dissipation ( Tc = 25’C ) : Pc = 30 W

Applications

1. Suitable for use in cotrol of motor drivers, printer hammer drivers, relay drivers, and constant-voltage regulators.

· Micaless package facilitating mounting.

Other data sheets within the file : 2SD1225, 2SD1827, D1225
