D2580 Datasheet – Vcbo=1500V, NPN Silicon Transistor – Sanyo

Part Number : D2580,  2SD2580

Function :  NPN Triple Diffused Planar Silicon Transistor

Package : TO3PML Type

Manufactures : Sanyo Semicon Device

Image :

D2580 transistor

Description :

Color TV Horizontal Deflection Output Applications

1. High speed.
2. High breakdown voltage (VCBO=1500V).
3. High reliability (Adoption of HVP process).
4. Adoption of MBIT process.
5. On-chip damper diode.

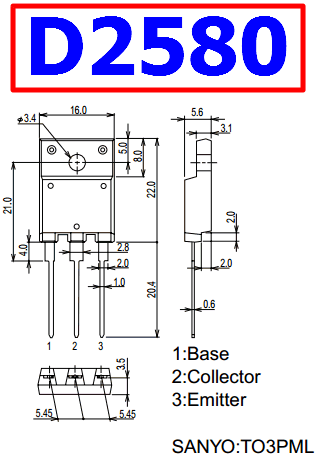

Pinout

D2580 datasheet pinout
Absolute Maximum Ratings

Vcbo =  1500V, Vceo = 800V, Vebo = 6V, Ic = 10A, Icp = 30A
