D2627 Datasheet PDF – 800V, 6A, NPN Transistor – Sanyo

This is one of the transistor types.

Part Number : D2627, 2SD2627

Function : 800V, 6A, NPN Transistor

Package : TO-220FI-LS 3 Pin Type

Manufactures : Sanyo Semicon Device

Image :
D2627 transistor image

Description :

This is 800V, 6A, NPN Triple Diffused Planar Silicon Transistor.

Features :

1. High speed.
2. High breakdown voltage(VCBO=1500V).
3. High reliability(Adoption of HVP process).
4. Adoption of MBIT process.
5. On-chip damper diode.

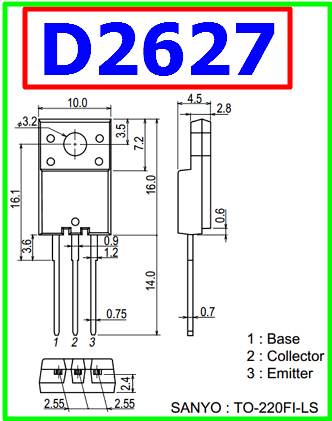

D2627 datasheet pinout
Absolute Maximum Ratings ( Ta =25°C )

  1. Collector-to-Base Voltage : VCBO = 1500 V
  2. Collector-to-Emitter Voltage : VCEO = 800 V
  3. Emitter-to-Base Voltage : VEBO = 6V
  4. Collector Current IC 6A
  5. Collector Current (Pulse) : ICP = 15 A

Applications :

1. Color TV Horizontal Deflection Output

D2627 Datasheet
