D478 Datasheet PDF – 100V, 11A, N-ch, MOSFET, AOD478

Part Number: D478, AOD478, AOI478

Function: 100V, 11A, N-Channel MOSFET

Package: TO252, TO251A Type

Manufacturer: Alpha and Omega Semiconductor

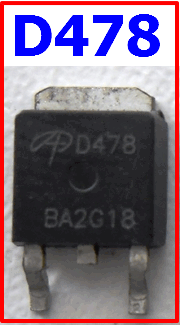

D478 mosfet

General Description

The D478, AOD478, AOI478 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting.

Pinout

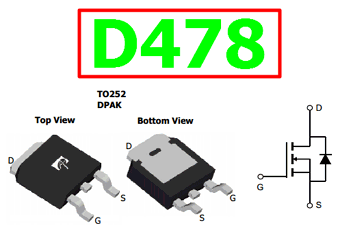

D478 datasheet pinout



Product Summary

1. VDS : 100V

2. ID(at VGS=10V) : 11A

3. RDS(ON)(at VGS=10V) : < 140mΩ

4. RDS(ON) (at VGS= 4.5V) : < 152mΩ



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 100 V

2. Gate to source voltage: VGSS = ± 20 V

3. Drain current: ID = 11 A (Tc = 25°C)

4. Drain Power Dissipation: Pd = 45 W

5. Junction temperature : Tch = 175 °C

6. Storage temperature: Tstg = -55 to +175 °C
