DAC8043A Datasheet – 12-bit Multiplying D/A Converter

Part Number : DAC8043A

Function : 12-bit serial input multiplying D/A converter

Pakcage : SOIC, DIP 8 Pin Type

Manufacturers : Analog Devices

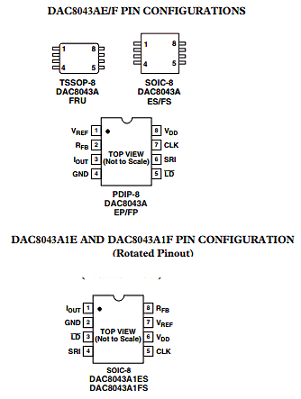

Pinouts :

DAC8043A datasheet

Description :

The DAC8043A is an improved high accuracy 12-bit multiplying digital-to-analog converter in space-saving 8-lead packages. Featuring serial input, double buffering and excellent analog performance, the DAC8043A is ideal for applications where PC board space is at a premium. Improved linearity and gain error performance permit reduced parts count through the elimina
tion of trimming components. Separate input clock and load DAC control lines allow full user control of data loading and analog output. The circuit consists of a 12-bit serial-in/parallel-out shift register, a 12-bit DAC register, a 12-bit CMOS DAC and control logic. Serial data is clocked into the input register on the rising edge of the CLOCK pulse. When the new data word has been
clocked in, it is loaded into the DAC register with the LD input pin. Data in the DAC register is converted to an output current by the D/A converter.

Features

1. Compact SOIC, and TSSOP Packages
2. True 12-Bit Accuracy
3. 5 V Operation @ <10A
4. Fast 3-Wire Serial Input
5. Fast 1 s Settling Time
6. 2.4 MHz 4-Quadrant Multiply BW
7. Pin-for-Pin Upgrade for DAC8043
8. Standard and Rotated Pinout

Applications

1. Ideal for PLC Applications in Industrial Control
2. Programmable Amplifiers and Attenuators
3. Digitally Controlled Calibration and Filters
4. Motion Control Systems

Other data sheets within the file :

DAC8043A1ES, DAC8043A1ESZ, DAC8043A1FS, DAC8043A1FSZ
