EGLXT973E Datasheet – 2-port 10/100 Ethernet Transceiver

Part Number: EGLXT973E, EGLXT973QE, EGLXT973E A3

Function: Low-power, 2-port 10/100 Ethernet Transceiver

Package: PQFP 100 Pin type

Manufacturer: Cortina, Intel


EGLXT973CA3

Description

The number of high-performance network applications demanding low power and design flexibility for Ethernet connectivity are growing rapidly. Applications that formerly required only single-port Ethernet connections now require access to multiple functions or even redundant (fault-tolerant) links.
Cable modems, xDSL modems, IP telephones and telecom backplanes are just a few of the applications demanding dual Ethernet connections. The Intel EGLXT973E is a dual-port 10/100Mbps Ethernet PHY transceiver providing a low-power, feature-rich solution for Ethernet networking. Expanding the industry-leading Intel portfolio of single and multi-port PHY solutions, the EGLXT973E A3 combines reliability and ease-of-use functions such as auto MDI/MDIX, tolerance to a cable discharge event (CDE), and long-distance cable support (up to 200m) for more flexibility in “less than optimal” wiring environments.

Odering Information

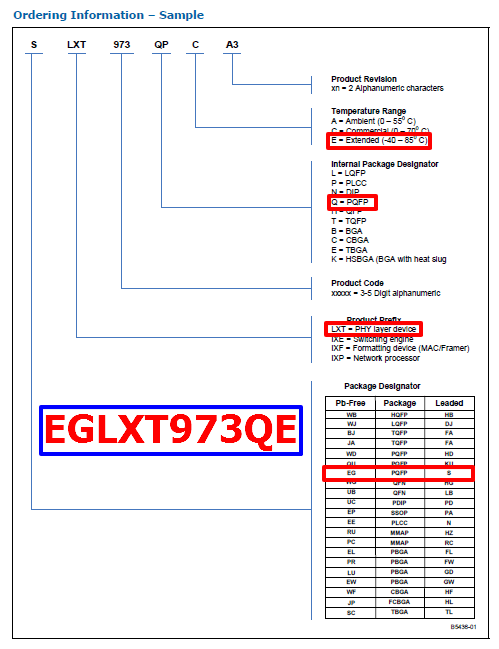

EGLXT973E Odering Information

Features

■ Dual-port Fast Ethernet PHY
■ 2.5V operation
■ 3.3V operation I/O compatibility
■ Low power consumption; 250 mW per port typical
■ Full 2-port MII interface with extended registers
■ Auto MDI/MDIX switch over capability
■ Signal Quality Error (SQE) enable/disable
■ 100BASE-FX fiber-optic capability on both ports
■ Integrated transmit and receive termination resistors

Pinout
LXT973QE pinout

Applications

1. VoIP Telephone Handsets
2. Media Converter – Fiber-to-Twisted-Pair
3. Internet Access Devices – Cable Modem, ADSL Modem
4. Ethernet Backplane Connections



EGLXT973E Datasheet





Other data sheets are available within the file: LXT973, SLXT973QC.A3V, EGLXT973QC.A3V
