EMC2 Datasheet PDF – Dual Digital Transistor – Rohm

Part Number : EMC2, UMC2N, FMC2A

Function : Dual Digital Transistor

Manufactures : Rohm

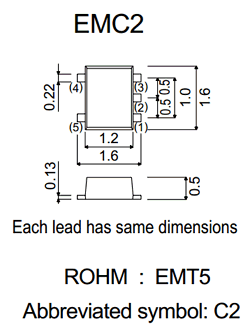

Image and Pinout
EMC2 datasheet pinout

Description :

This is Power Management ( Dual Digital Transistor ).

Features :

1) Includes a DTA124E and DTC124E transistor in a EMT or UMT or SMT package.
2) Ideal for power switch circuits.
3) Mounting cost and area can be cut in half.

EMC2 equivalent circuit

Structure :

1. Epitaxial planar type
2. a PNP and a NPN digital transistor (each with two built in resistors)

The following characteristics apply to both DTr1and DTr2,, however, the “-” sign on DTr2,values for the PNP type have been omitted.



EMC2 Datasheet
