EW40200 Datasheet PDF

Part Number : EW40200

Function : Character Lcd

Manufacturers : Unspecified

Pinouts :

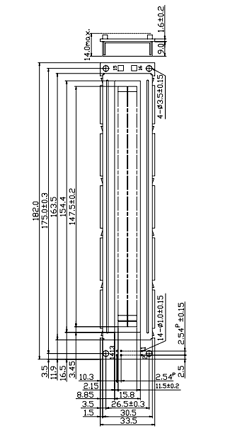

EW40200 datasheet

Description :

( 1 ) NUMBER OF CHARACTER ——————–  40 CH – 2 LINES
( 2 ) MODULE SIZE  ——————————–182.0W – 33.5H – 14.0D (max.) mm
( 3 ) EFFECTIVE AREA  —————————-154.4W – 15.8H mm
( 4 ) CHARACTER FONT  —————————5 – 7 DOTS + CURSOR
( 5 ) CHARACTER SIZE  —————————3.20W – 5.55H mm
( 6 ) CHARACTER PITCH  —————————3.70W – 5.95H mm
( 7 ) DOT SIZE  ————————————-0.60W – 0.65H mm
( 8 ) DOT PITCH  ———————————–0.65W – 0.70H mm
( 9 ) LCD TYPE *
( 10 ) DRIVING METHOD  —————————1 / 16 DUTY MULTIPLEX DRIVE
( 11 ) BACK-LIGHT *
