F16C40A Datasheet – 400V, 16A, Fast Recovery Rectifier

Part Number : F16C40A

Function : 16A, 400V, Switchmode Dual fast Recovery Power Rectifier

Package : TO-220AB Type

Manufacturers : Mospec Semiconductor

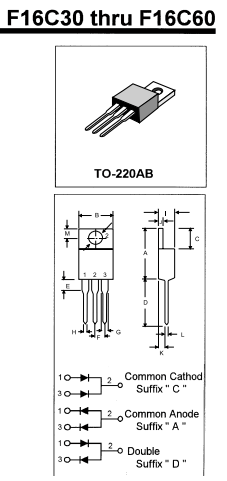

Pinouts :

F16C40A datasheet

Description :

The F16C40A designed for use in switching power supplies. inverters and as free wheeling diodes. These state-of-the-art devies have the following features.


1. Glass Passivated chip junctions
2. Low Reverse Leakage Current
3. Fast Switching for High Efficiency
4. 150’C Operating Juction Temperature
5. Low Forward Voltage, High Current Capability

Absoulute maximum ratings

1. Peak Repetitive Reverse Voltage : Vrrm = 400 V
2. RMS Reverse Voltage : Vr(rms) = 280 V
3. Peak Repetitive Forward Current : Ifm = 16 A

Other data sheets within the file : F16C30A, F16C30D, F16C40D, F16C50A
