FDG6332C Datasheet – 20V, P-Ch, MOSFET, SO-6

Part Number : FDG6332C

Marking : .32

Function : 20V N & P-Channel PowerTrench MOSFET

Package : TSSOP-8 and SSOP-6 Type

Manufacturers : Fairchild Semiconductor

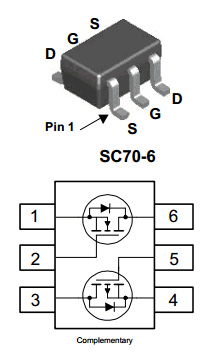

Image and Pinouts :

FDG6332C datasheet



Description :

The N & P-Channel MOSFETs are produced using Fairchild Semiconductor’s advanced PowerTrench process that has been especially tailored to minimize on-state resistance and yet maintain superior switching performance.

These devices have been designed to offer exceptional power dissipation in a very small footprint for applications where the bigger more expensive TSSOP-8 and SSOP-6 packages are impractical.



Features :

1. Low gate charge

2. High performance trench technology for extremely low RDS(ON)



Applications :

1. DC/DC converter
2. Load switch
3. LCD display inverter



Other data sheets within the file : FDG6332, FDG6332C-F085



FDG6332C Datasheet PDF Download


FDG6332C pdf
