FMX32S Datasheet – 20A, 200V, Diode (Rectifier)

This is one of the diode types. This is a kind of the rectifier.

Part Number : FMX32S

Function : 20A, 200V, Diode ( Fast Recovery Half Bridge Rectifier )

Package : TO-3P, TO-247AD Type

Manufacturers : Thinki Semiconductor

See the preview image and the PDF file for more information.


FMX32S diode

Description :

20A, 200V, Dual Common Cathode Super Fast Recovery Half Bridge Rectifier

Features

1. Low forward voltage drop
2. Latest GPP technology with super fast recovery time
3. High current capability
4. High surge current capability
5. Low reverse leakage current

Pinout

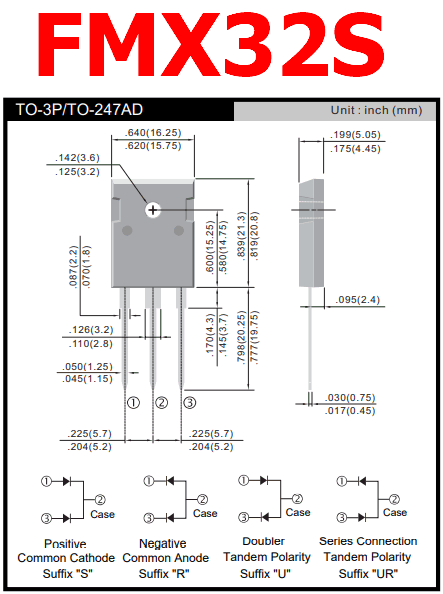

FMX32S pinout

Absolute Maximum Ratings (Ta = 25°C)

1. Maximum Recurrent Peak Reverse Voltage : Vrrm 200 V
2. Maximum RMS Voltage : Vrms = 140 V
3. Maximum DC Blocking Voltage : Vdc = 200 V
4. Operating Junction and Storage Temperature Range : TJ, TSTG = -55 to +150 °C

Application

1. Automotive Inverters, Solar Inverters
2. Plating Power Supply, SMPS, Adapter and UPS
3. Car Audio Amplifiers and Sound Device Systems



Other data sheets within the file : FMX33S, FMX34S, FMX36S
