FSM10 Datasheet PDF – Timer

Part Number : FSM10

Function : Timers – FRONT series

Manufacturers : Tele ( www.tele-power-net.com )

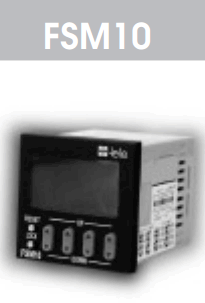

FSM10 datasheet

Description :

1. Front panel mounting
2. Width 45mm
3. 8 functions
4. 1 change over contact

Functions

1. ON delay (A)

When the supply voltage U is applied, the value of the time already expired is cleared and the set time t begins to run (display for time lapse flashes, counting runs either by adding or subtracting). After expiry of the time t, the output relay R picks up (OP display lights up) and the set time t (adding) or the value 0 (subtracting) is shown in the display. The status is maintained until the supply voltage is interrupted
