G03H1202 Datasheet PDF – 1200V, 3A, IGBT – Infineon

Part Number : G03H1202

Function : HighSpeed 2-Technology, 1200V, 3A, IGBT

Package : TO-220, TO-247 Type

Manufacturers : Infineon Technologies

Image and Pinout
G03H1202 Pinout

Description :

This is 1200V, IGBT. ( insulated-gate bipolar transistor. )

•  Designed for:
– Lamp Ballast
– ZVS-Converter
– optimised for soft-switching / resonant topologies

•  2nd generation HighSpeed-Technology for 1200V applications offers:
– loss reduction in resonant circuits
– temperature stable behavior
– parallel switching capability
– tight parameter distribution
– Eoffoptimized for IC=3A

• Qualified according to JEDEC2 for target applications
• Pb-free lead plating; RoHS compliant

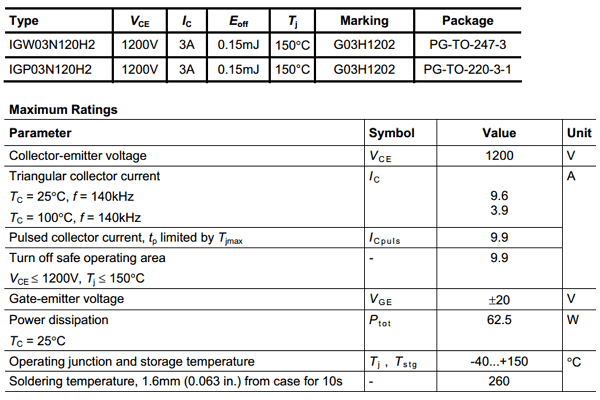

G03H1202 Datasheet

G03H1202 Datasheet PDF Download
G03H1202 pdf

Other data sheets within the file : IGP03N120H2, IGW03N120H2
