G242CX5R1AC Datasheet – 240×128 dots, LCD Module – Seiko

Part Number : G242CX5R1AC

Description : LCD Displays, 240 x 128 dots.

Manufactures : Seiko Instruments

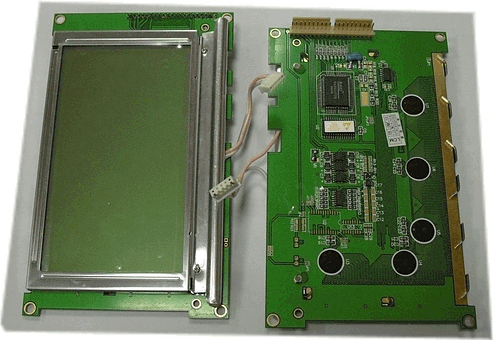

Image :
G242CX5R1AC

Description :

This is 240 dots x 128 dots liquid crystal module.

Features :

1. 1/200 duty(single screen)

2. Built in controller ( EPSON SED 1330FBA)

3. Interface to 8 bit MPU

4. 8 Kbytes RAM

5. Super new TN LCD panel

6.+5V sigle power supply

7. Built-in FL backlight (side edge type)

8. Inverter Input Voltage 5V +/-1 ( Max power 3.5W)
