G30T60 Datasheet – 600V, 30A, IGBT – Infineon

Partnumber : G30T60, IGW30N60T

Function : Low Loss 600V, 30A IGBT

Package : PG-TO247-3 Type

Manufacturers : Infineon


G30T60 datasheet

Features:

1. Very low VCE(sat) 1.5V (typ.)
2. Maximum Junction Temperature 175°C
3. Short circuit withstand time 5s
4. Designed for :
– Frequency Converters
– Uninterruptible Power Supply
5. TRENCHSTOP and Fieldstop technology for 600V applications offers :
– very tight parameter distribution
– high ruggedness, temperature stable behavior
– very high switching speed
6. Positive temperature coefficient in VCE(sat)
7. Low EMI
8. Low Gate Charge
9. Qualified according to JEDEC1 for target applications
10. Pb-free lead plating; RoHS compliant



Pinout

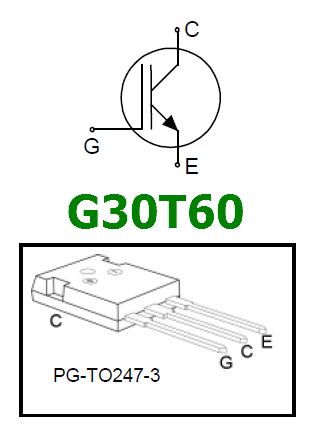

G30T60 pinout





G30T60 Datasheet
