GA1L3M Datasheet PDF – Vceo=60V, NPN Transistor – NEC

Part Number : GA1L3M, Marking : L81

Function : Vceo=60V, Silicon NPN Transistor

Package : SOT-323 / SC-70 Type

Manufacturers : NEC ( Renesas Technology )

Pinouts :

GA1L3M datasheet



Description :

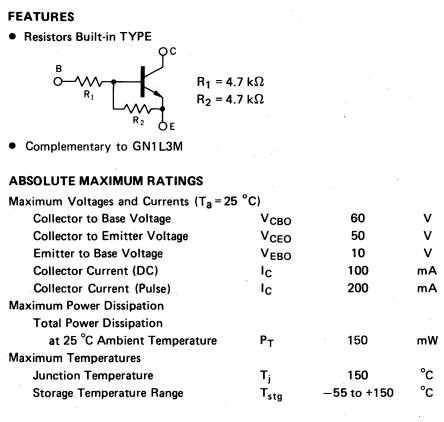

MEDIUM SPEED SWITCHING RESISTOR BUILT-IN TYPE NPN TRANSISTOR

Features

1. Resistors Built-in Type
2. Complementary to GN1L3M

Absolute Maximum Ratings ( Ta = 25’C )

1. Collector to Base Voltage : Vcbo = 60 V
2. Collector to Emitter Voltage : Vceo = 50 V
3. Emitter to Base Voltage : Vebo = 10 V
4. Collector Current (DC) : Ic = 100 mA
5. Collector Current ( Pulse ) : Ic = 200 mA
6. Total Power Dissipation : Pt = 150 mW

Other data sheets within the file : GA1L3M-T1
