H669A Datasheet – NPN Silicon Transistor – Huashan

Part Number : H669A

Function : NPN Silicon Transistor ( Low-Frequency Power Amplifier )

Package : TO-126ML 3Pin Type

Manufacturers : Huashan

Image :

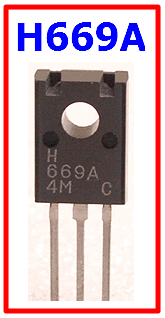

H669A transistor


Description

Limit value (Ta = 25 ℃)
1. Storage temperature : Tstg = -55 ~ 150 ℃
2. Junction temperature : Tj = 150 ℃
3. Collector power dissipation (Tc = 25 ℃) : PC = 20W
4. Collector power dissipation (TA = 25 ℃) : PC = 1W
5. Collector – base voltage : VCBO = 180V
6. Collector – emitter voltage : VCEO = 160V
7. Emitter – base voltage : VEBO =  5V
8. Collector current : IC = 1.5A

Pinouts

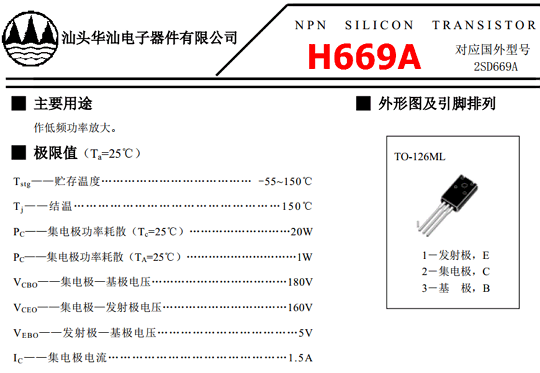

H669A datasheet pinout

H669A Datasheet
