HDM16416H-S00S Datasheet – 16 Char x 4 Lines, LCD Module

Part Number : HDM16416H-S00S

Function : 16 Char x 4 Lines, LCD Character Display Modules

Manufacturers : Hantronix

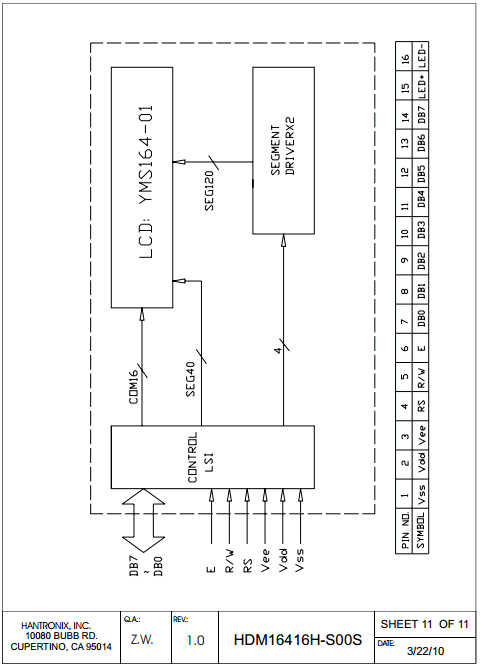

Pinouts :

HDM16416H-S00S datasheet

Description :

16 CHARACTERS, 4 LINES LCD DISPLAY MODULE

A. Drive Method: 1/16 Duty, 1/5 Bias
B. The Module Operating Voltage: 5.0V;
C. The LCD Operating Voltage : 4.7V;
D. Viewing Direction: 6:00
E. Operating Temperature: 0 ~50’C
F. Storage Temperature: -20 ~70’C
G. Display type: STN mode, Positive type display






Other data sheets within the file : HDM16416HS00S, HDM16416H
