HER301 Datasheet – 3A, 50V, Diode, Rectifier ( PDF )

Part Number: HER301

Function: 3A, 50V, Diode, Rectifier

Package: DO-27 type

Manufacturer: Rectron Semiconductor

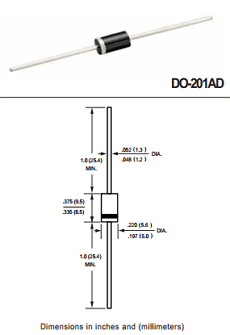

Image and Pinouts:

HER301 datasheet



Description:

This is High efficiency rectifier. Max recurrent peak reverse voltage 1000V, max RMS voltage 700V, max DC blocking voltage 1000V. Max average forward recttified current 3.0A at 50degreC

Features:

1. Low power loss,high efficiency

2. Low leakage

3. Low forward voltage drop

4. High current capability

5. High speed switching

6. High reliability

7. High current surge

Mechanical Data :

1. Case: Molded plastic

2. Epoxy: UL 94V-0 rate flame retardant

3. Lead: MIL-STD-202E, Method 208 guaranteed

4. Polarity: Color band denotes cathode end

5. Mounting position: Any

6. Weight: 1.20 grams

Other data sheets are available within the file:

HER302, HER303, HER304, HER305



HER301 Datasheet PDF Download


HER301 pdf
