HHC66A-7A-1Z-12VDC Datasheet – PCB Relay – Clion

Part Number : HHC66A-7A-1Z-12VDC

Function : Miniature PCB Relay

Package : 5Pin Type

Manufactures : Clion

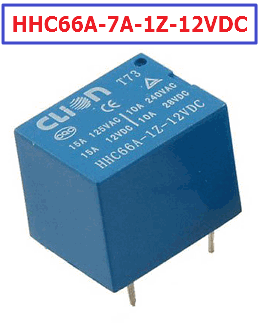

Image :

HHC66A-7A-1Z-12VDC image


Description :

  1. Product Name : PCB Power Relay;Model : HHC66A-1Z-12VDC(T73)
  2. Coil Voltage : DC 12V;Contact Capacity : 15A 125V AC/12V DC,10A 240V AC/28V DC
  3. Number of Pins : 5;Contact : SPDT
  4. Size (Approx.) : 1.9 x 1.4 x 2cm/0.7″ x 0.6″ x 0.8″ (L*W*H);Color : Blue
  5. Weight : 41g;Package Content : 5 x PCB Power Relays

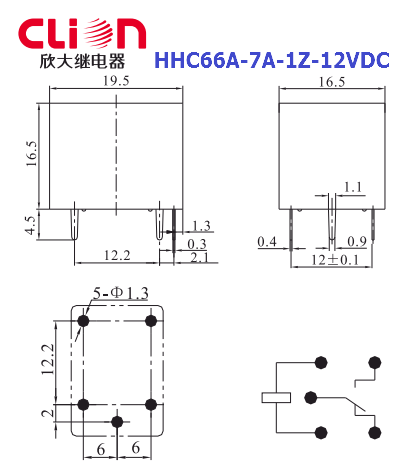

Pinout :

HHC66A-7A-1Z-12VDC datasheet





HHC66A-7A-1Z-12VDC Datasheet
