HN16614CG Datasheet – Single Port Transformer – Mingtek

Part Number : HN16614CG

Function : 10/100 Base-T Single Port Transformer For Modules

Package : SMD 16 Pin Type

Manufacturers : Mingtek Technology Corp ( http://www.mingtek.tw )

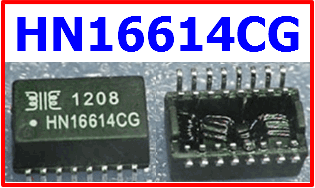

HN16614CG mingtek pdf

Features

1. IEEE 802.3 Ethernet Compatible,10/100 Base-TX
2. Surface Mountable(Miniature size)
3. Product Type: Green Product



Ordering Informations

HN16614CG transformer

HN16012CG, HN16015CG, HN16016CG, HN16017CG, HN16018CG, HN16021CG
HN16516CG, HN16517CG, HN16612CG, HN16613CG, HN16615CG



Pinout

HN16614CG datasheet pinout

HN16614CG Datasheet
