HUF75623S3 Datasheet – 22A, 100V, N-Ch MOSFET – Fairchild

Part Number: HUF75623S3

Description

22A / 100V / 0.064 Ohm / N-Channel / UltraFET Power MOSFETs

Manufacturer: Fairchild Semiconductor

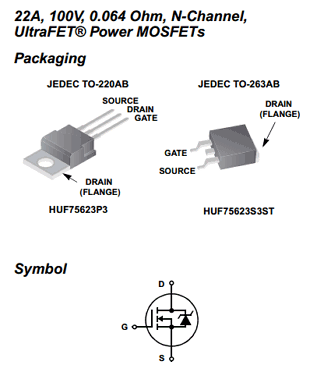

Pinout

HUF75623S3 Datasheet

Features
• Ultra Low On-Resistance
– rDS(ON)= 0.064Ω, VGS = 10V
• Simulation Models
– Temperature Compensated PSPICE® and SABER Electrical Models
– Spice and SABER Thermal Impedance Models
– www.fairchildsemi.com
• Peak Current vs Pulse Width Curve
• UIS Rating Curve


Other data sheets are available within the file: HUF75623P3, HUF75623S3ST,  75623P, 75623S

HUF75623S3 Datasheet
