J6810D Datasheet – 1500V Color Display Horizontal Deflection

Part Number : J6810D, FJAF6910

Function : High Voltage Color Display Horizontal Deflection Output

Manufacturers : Fairchild Semiconductor

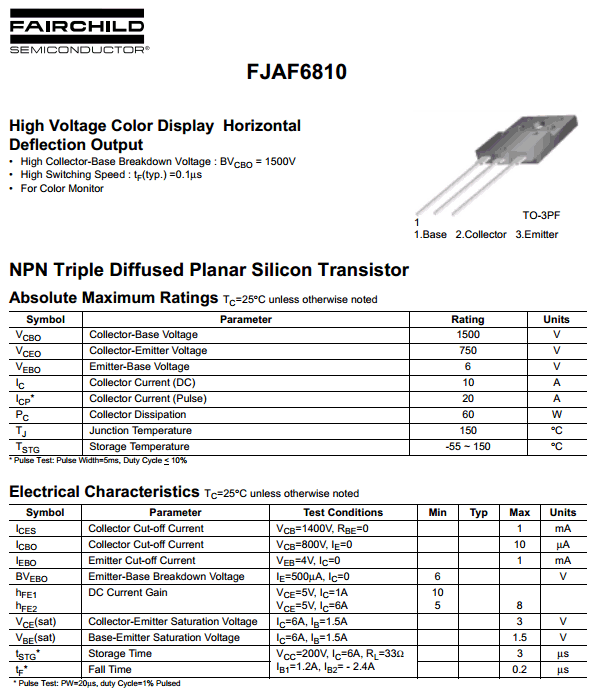

J6810D datasheet

Description :

High Voltage Color Display Horizontal Deflection Output
1. High Collector-Base Breakdown Voltage : BV CBO= 1500V
2. High Switching Speed : tF(typ.) =0.1µs
3. For Color Monitor

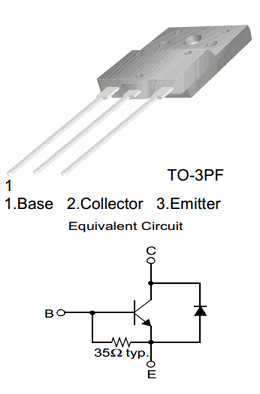

FJAF6910 pinout



J6810D Datasheet PDF Download

J6810D Datasheet, FJAF6810 Datasheet

J6810 pdf

Other data sheets within the file : FJAF6810D, J6810
