J6810D PDF Datasheet – 1500V, NPN Transistor – FJAF6810D

This post explains for the 10A, transistor.

The Full Part Number is J6810D, FJAF6810D.

The function of this transistor is 750V, 10A, NPN Transistor.

The package is TO-3PF Type

The manufacturers of this product is Fairchild Semiconductor.

See the preview image and the PDF file for more information.

Preview images :

J6810D pinout datasheet

Description

J6810D is 750V, 10A, NPN Triple Diffused Planar Silicon Transistor.

Overall, a “Silicon NPN Triple Diffused transistor” is a transistor made of silicon with an NPN configuration and manufactured using a triple diffusion process. This combination of materials and manufacturing techniques helps create a transistor with improved performance and capabilities. These transistors are commonly used in various applications, including amplifiers, signal processing, and switching circuits.

Features:

• High Collector-Base Breakdown Voltage : BVCBO = 1500V

• High Switching Speed : tF(typ.) =0.1μs

• For Color TV

Absolute Maximum Ratings

1. Collector-Base Voltage : VCBO = 1500 V
2. Collector-Emitter Voltage : VCEO = 750 V
3. Emitter-Base Voltage : VEBO= 6 V
4. Collector Current (DC) : IC = 10 A
5. Collector Current (Pulse) : ICP = 20 A
6. Collector Dissipation : PC = 60 W
7. Junction Temperature : TJ = 150 °C

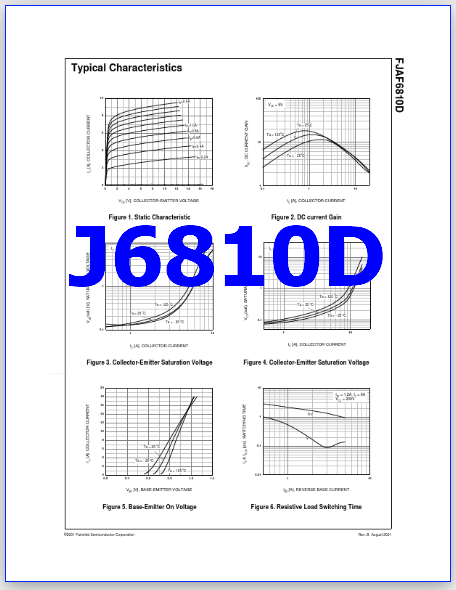

J6810D pdf FJAF6810D

Applications:

1. High Voltage Color Display Horizontal Deflection Output (Damper Diode Built-In)



J6810D PDF Datasheet
