JM20330 Datasheet – Serial ATA Bridge Chip – JMicron

Part Number : JM20330

Function : Serial ATA Bridge Chip

Package : 64-pin TQFP Type

Manufactures : JMicron ( http://www.jmicron.com/ )


jm20330-chip

Description

JMicron’s JM20330 is a single chip solution for serial and parallel ATA translation. It includes the
Serial ATA PHY, Link, Transport, and Parallel ATA (application layer) controller. The Serial ATA
physical, link, and transport layers are compliant to Serial ATA 1.0. JM20330 supports a 1.5GHz data
rate, and scalable to 3.0 GHz data rate by directly doubling the internal clock source. The application
layer supports both the ATA register command set and PACKET command set, which could drive both
Hard Disk Drive and ATAPI Optical Storage such as CR-ROM, CD-RW, DVD-ROM, DVD-RW, etc.
The Serial ATA and the Parallel ATA application layer support both host and device operation and can
be configured through a single pin.

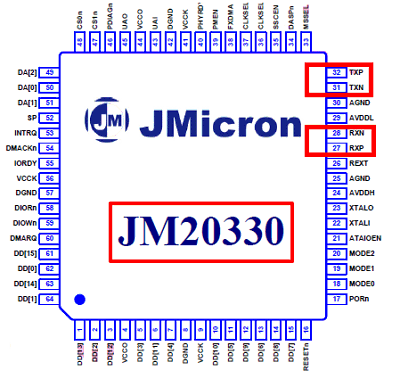

Pinout

jm20330-datasheet-pinout

Features

1. Serial ATA 1.0 Specification compliant
2. Automatic Serial ATA 3.0/1.5 Gbps speed negotiation
3. ATA/ATAPI PIO mode 0 to 4
4. ATA/ATAPI Ultra DMA of transfer rate 16.7, 25, 33, 48, 66, 100, 133, and 150MB/s.
6. ATA/ATAPI LBA48 addressing mode associated with 2-byte sector count
7. Support Serial ATA hot-plug
8. Ultra low power consumption
9. Work for both AC and DC couple between the transmitter and the receiver
10. Provide specified OOB signal detection and transmission



Reference Site : http://www.msfn.org/board/topic/152483-sata-to-ide-adapters-whichwhatwhy/

JM20330 Datasheet
