This is one of the MOSFET types. This is a kind of the transistor.
Part Number : K10A50D
Function : Silicon N-Channel MOS Field Effect Transistor
Package : TO-220 Type
Manufacturers : Toshiba
Product Image :
Description :
This is 500V, 10A, Silicon N Channel MOSFET.
Features :
1. Low drain-source ON-resistance: RDS (ON)= 0.62 Ω(typ.)
2. High forward transfer admittance: ⎪Yfs⎪= 5.0 S (typ.)
3. Low leakage current: IDSS= 10 μA (max) (VDS= 500 V)
4. Enhancement mode: Vth= 2.0 to 4.0 V (VDS= 10 V, ID= 1 mA)
Absolute Maximum Ratings (Ta = 25°C)
1. Drain-source voltage : VDSS = 500 V
2. Gate-source voltage : VGSS = ±30 V
3. Drain power dissipation (Tc = 25°C) : PD = 45 W
4. Single pulse avalanche energy : EAS = 264 mJ
5. Avalanche current : IAR = 10 A
6. Repetitive avalanche energy : EAR = 4.5 mJ

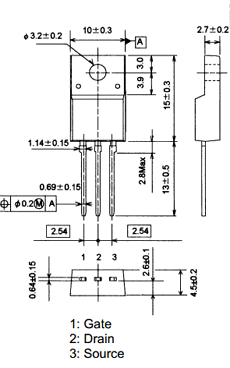

K10A50D Pinout
Official Site : https://toshiba.semicon-storage.com/
Applications
1. Switching Regulator
Other data sheets within the file : K10A500, TK10A50D, TK10A500
K10A50D Datasheet PDF Download
