K1815 Datasheet – Vdss=60V, N-ch, Power MOSFET – FUJI

Part Number : K1815, 2SK1815

FunctionĀ : N-Channel Silicon Power MOS FET

Package : TO-3P type

Manufactures : Fuji

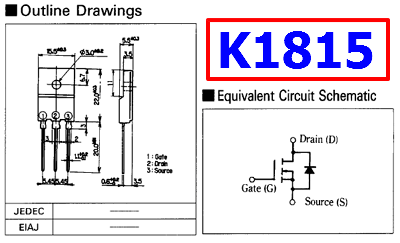

k1815-datasheet-pinout

Features

1. High current
2. Low no-resistance
3. No secondary breakdown
4. Low driving power
5. High forward Transconductance

Applications

1. Motor controllers
2. General purpose power amplifier
3. DC-DC converters

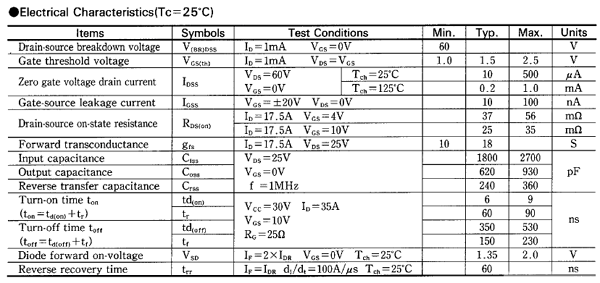

k1815-electrical-characteristics



Absolute Maximum Ratings ( Ta = 25’C )

1. Drain-source voltage : Vdss = 60V
2. Continuous drain current : Id = 35A
3. Pulsed drain current : Id(puls) = 140A
4. Continuous reverse drain currentĀ : Idr = 35A
5. Max. power dissipation : Pd = 50W



K1815 Datasheet
