Part Number: K1904
Function: 100V, 10A, N-Channel MOSFET
Package : TO-220ML
Manufacturer: SANYO (Panasonic), Hitachi
Image and Pinouts:
Description:
This is 100V, 10A, N-Channel Silicon MOSFET.
Features:
1. Low ON resistance.
2. Ultrahigh-speed switching.
3. Low-voltage drive.
4. Micaless package facilitating mounting.

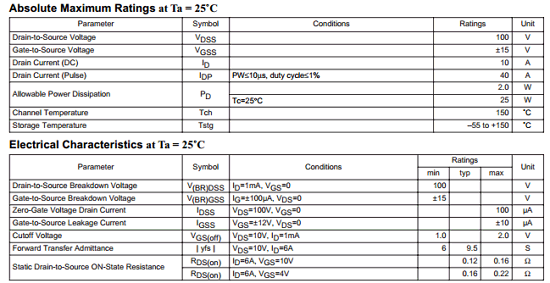

Absolute Maximum Ratings
1. Drain-to-Source Voltage : VDSS = 100 V
2. Gate-to-Source Voltage : VGSS = ±15 V
3. Drain Current (DC) : ID = 10 A
4. Drain Current (Pulse) : IDP = 40 A
Test Circuit :
Applications:
1. Ultrahigh-Speed Switching
Other data sheets are available within the file: 2SK1904
