K2985 Datasheet PDF – 60V, 45A, N-Ch, MOSFET

Part Number : K2985

Function : 45A, 60V, N-Channel MOSFET

Package : TO-220 Type

Manufacturers : Toshiba

Images :

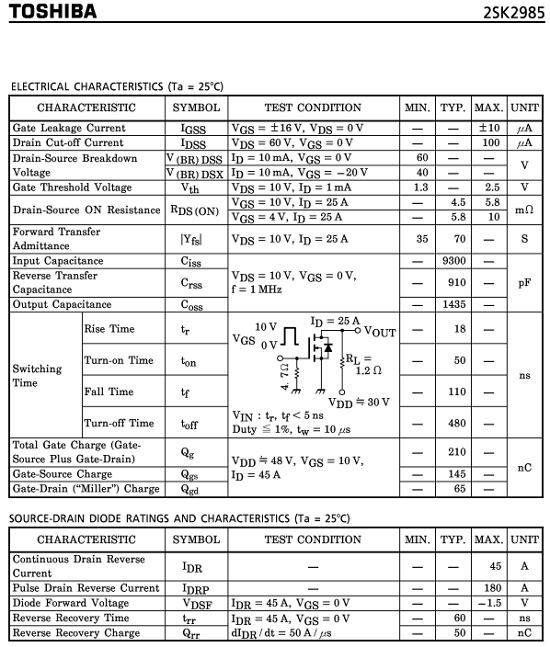

K2985 datasheet

Description :

1. Low drain-source ON resistance  : RDS (ON)= 4.5 mΩ(typ.)
2. High forward transfer admittance  : |Yfs| = 70 S (typ.)
3. Low leakage current  : IDSS= 100 µA (max) (VDS= 60 V)
4. Enhancement−mode : Vth= 1.3~2.5 V (VDS= 10 V, ID= 1mA)

Pinouts

Absolute maximum ratings

1. Drain−source voltage : VDSS = 60 V
2. Drain−gate voltage (RGS = 20 kΩ) : VDGR = 60 V
3. Gate−source voltage : VGSS = ±20 V
4. Drain current (DC) : ID = 45 A
5. Drain power dissipation (Tc = 25°C) : PD = 45 W
6. Single pulse avalanche energy : EAS = 701 mJ
7. Avalanche current : IAR = 45 A
8. Repetitive avalanche energy : EAR = 4.5 mJ
9. Channel temperature : Tch = 150 °C
10. Storage temperature range : Tstg = -55~150 °C



Applications

1. DC−DC Converter
2. Relay Drive and Motor Drive

Other data sheets within the file : 2SK2985
