K3158 Datasheet PDF – 150V, 30A, N-Channel MOSFET

Part Number: K3158

Function: 150V, 30A, Silicon N Channel MOSFET

Package: TO-220AB Type

Manufacturer: Renesas Electronics

Image and Pinouts:

K3158 datasheet

Description

This is 150V, 30A, Silicon N Channel MOSFET.

Features

1.  Low on-resistance RDS=40mΩ typ.

2.  High speed switching

3.  4V gate drive device can be driven from 5V source

components

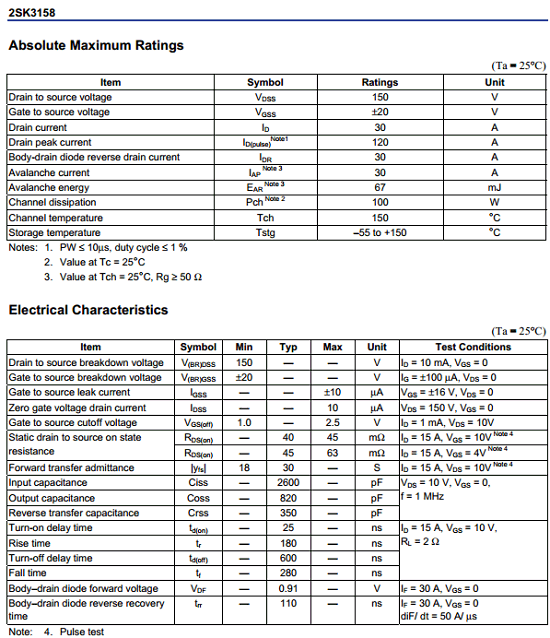

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 150 V

2. Gate to source voltage: VGSS = ±20 V

3. Drain current: ID = 30 A

4. Drain peak current : ID(pulse) = 120 A

5. Body-drain diode reverse drain current : IDR = 30 A

6. Avalanche current : IAP = 30 A

7. Avalanche energy : EAR = 67 mJ

8. Channel dissipation: Pch = 100 W

9. Channel temperature: Tch = 150 °C

10. Storage temperature: Tstg = –55 to +150 °C

Applications:

1. High Speed Power Switching

Other data sheets are available within the file: 2SK3158, 2SK3158-E
