K4213 Datasheet – 25V, N-Ch, MOSFET, 2SK4213 – Renesas

This is one of the types of MOSFETs and is a kind of transistor.

Part Number: K4213, 2SK4213

Function: Switching N-channel Power MOSFET

Package: TO-252 Type

Manufacturer: NEC, Renesas

K4213 mosfet transistor

Description

The K4213 is N-channel MOS FET device that features a low on-state resistance and excellent switching characteristics, and designed for low voltage high current applications such as DC/DC converter with synchronous rectifier.

Features

1. Low on-state resistance :
(1) RDS(on)1= 6.0 mΩMAX. (VGS= 10 V, ID= 30 A)
(2) RDS(on)2= 9.5 mΩMAX. (VGS= 4.5 V, ID= 20 A)

2. Low total gate charge :
(1) QG= 34 nC TYP. (VDD= 15 V, VGS= 10 V, ID= 30 A)

3. 4.5 V drive available

4. Avalanche capability ratings

Pinout

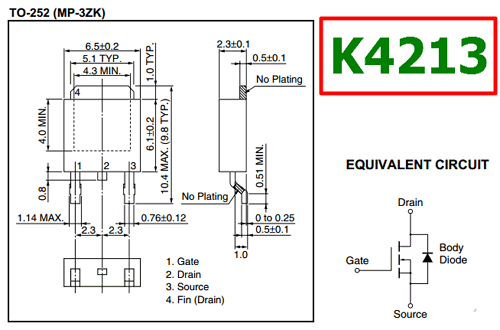

K4213 datasheet pdf pinout

Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 25 V

2. Gate to source voltage: VGSS = ± 20 V

3. Drain current: ID = ± 64 A (Tc = 25°C)

4. Total Power Dissipation : Pt = 1 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C

K4213 Datasheet
