KSD5017 Datasheet PDF – 800V, 6A, NPN Transistor

Part Number : KSD5017

Function : 6A, 800V, NPN Transistor

Package : TO-3P(F) Type

Manufacturers : Samsung

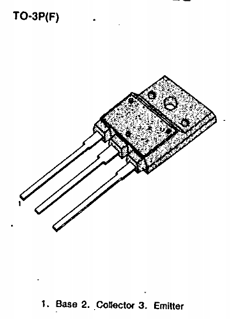

Image and Pinouts :

KSD5017 datasheet

Description :

This is NPN Triple Diffused Planar Silicon Transistor.

Features :

1. High Collector-Base Voltage Vcbo = 1500V

Absolute maximum ratings ( Ta = 25°C )

1. Collector to Base Voltage : Vcbo = 1500 V
2. Collector to Emitter Voltage : Vceo = 800 V
3. Emitter to Base Voltage : Vebo = 6 V
4. Collector Current : Ic = 6 A
5. Total Dissipation : Pc = 60 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ + 150°C

Applications :

1. Color TV Horizontal Output

Other data sheets within the file : D5017
