KU034N08P Datasheet PDF – 75V, N-Ch, MOSFET

Part Number : KU034N08P

Function : 75V, N-channel Trench MOSFET

Pacakge : TO-220AB Type

Manufacturers : KEC

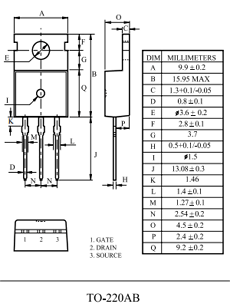

Pinouts :

KU034N08P datasheet



Description :

This Trench MOSFET has better characteristics, such as fast switching time, low on resistance, low gate charge and excellent avalanche characteristics. It is mainly suitable for DC/DC Converter, Synchronous Rectification and a load switch in battery powered applications.

Features :

1. VDSS= 75V, ID= 170A

2. Drain-Source ON Resistance : RDS(ON)=3.4mΩ(Max.) @V GS= 10V



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage : VDSS = 75 V

2. Gate to source voltage : VGSS = ± 20 V

3. Drain current : ID = 170 A

4. Allowable Power Dissipation : Pd = 192 W

5. Channel temperature : Tch = 150 °C

6. Storage temperature : Tstg = -55 to +150 °C

KU034N08P Datasheet PDF Download


KU034N08P pdf

Other data sheets within the file : KU034N08
