KV1450F5 Datasheet PDF – Variable Capacitance Diode

Part Number : KV1450F5

Function : VARIABLE CAPACITANCE DIODE

Package : SOT-23 Type

Manufacturers : Toko America Inc

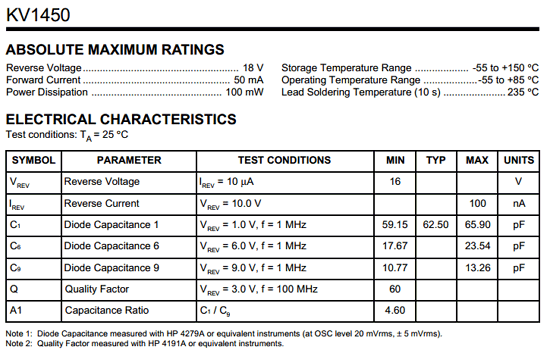

Image and Pinouts :

KV1450F5 datasheet

Description :

The KV1450 variable capacitance diode was specially made to be used as tuning elements in car radios, radio cassettes, stereos, and other consumer radios. The KV1450 is suitable for wide band tuning from 76 to 108 MHz.

If the device is used only for FM reception, it is possible to operate it at 4.5 V so it is very useful in lowering the power demands of the set.

Features :

1. Very Low Series Resistance

2. Excellent Linearity (CV Curve)

3. Large Capacitance Ratio (A1 = 4.60 minimum)

Applications :

1. FM Radio

2. Voltage Controlled Oscillator



KV1450F5 Datasheet PDF Download

KV1450F5 pdf

Other data sheets within the file : KV1450, KV1450-F5
