L1085DG Datasheet – 3A, Adjustable Linear Regulator – ELM

This is one of the regulator types.

Part Number: L1085DG

Function: 3A, Adjustable Low Dropout Linear Regulator

Package: TO-252 Type

Manufacturer: ELM, NIKO-SEM

L1085DG image


Description

The L1085G is a positive and low dropout three-terminal voltage regulator with 3A output current capability. This device is designed for use in low voltage applications that offers lower dropout voltage and faster transient response.

Features

  1. Output voltage range (adj.) : 1.27V to 5.55V
  2. Line regulation : Typ. 0.5%
  3. Load regulation : Typ. 0.5%
  4. LDO Voltage : 1.3V typical at up to 3A

Pinout

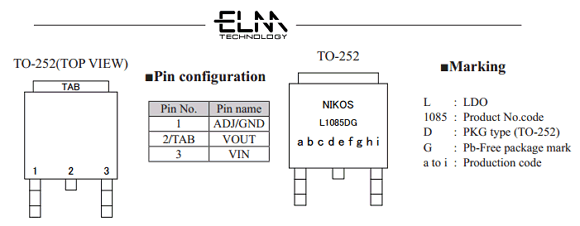

L1085DG datasheet pinout

Application

1. SCSI terminator
2. Linear regulator
3. Battery chargers
4. Micro-controller

Other data sheets are available within the file: ELM1085DG
