L200 Datasheet – Adjustable voltage and current regulator – ST

Part Number : L200

Function : ADJUSTABLE VOLTAGE AND CURRENT REGULATOR

Manufactures : STMicroelectronics

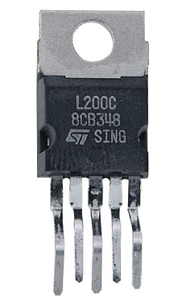

L200 image

Features
1. ADJUSTABLE OUTPUT CURRENT UP TO 2 A (GUARANTEED UP TO Tj = 150°C)
2. ADJUSTABLE OUTPUT VOLTAGE DOWN TO 2.85 V
3. INPUT OVERVOLTAGE PROTECTION (UP TO 60 V, 10 ms)
4. SHORT CIRCUIT PROTECTION
5. OUTPUT TRANSISTOR S.O.A.PROTECTION
6. THERMAL OVERLOAD PROTECTION
7. LOW BIAS CURRENT ON REGULATION PIN
8. LOW STANDBY CURRENT DRAIN

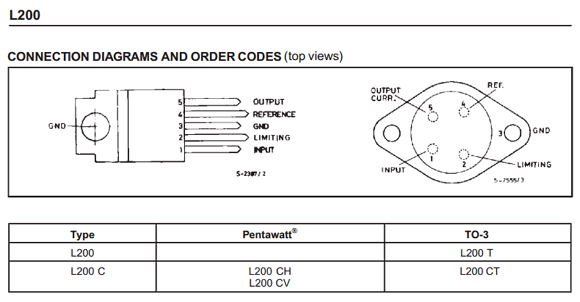

L200 datasheet

Official Homepage : http://www.st.com/web/catalog/sense_power/FM142/CL1015/SC315/PF67043

Description

The L200 is a monolithic integrated circuit for voltage and current programmable regulation. It is available in Pentawatt package or 4-lead TO-3 metal case.Current limiting, power limiting, thermal shutdown and input overvoltage protection (up to 60 V) make the L200 virtually blow-out proof.
The L200 can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.

L200 Application Note : [ L200 application note.pdf ]

L200 Datasheet
