LC320DXN-SEU1 Datasheet – 32 Inch WXGA TFT LCD – LG

Part Number : LC320DXN-SEU1

Active Screen Size : 31.51 inches(800.4mm) diagonal

Outline Dimension : 760.0 X 450.0 X 32.5(B) (Typ.)

Manufacturers : LG Display

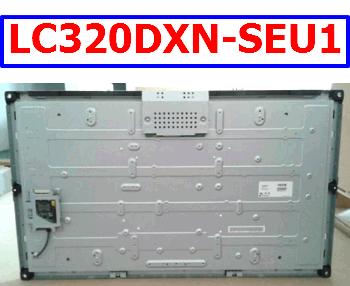

LC320DXN-SEU1 datasheet

Description

The LC320DXN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backl ight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode. It has a 31.51 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).

Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes. Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of more than 16.7M(6bit + A-FRC) colors. It has been designed to apply the 8-bit 1-port LVDS interface. It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.

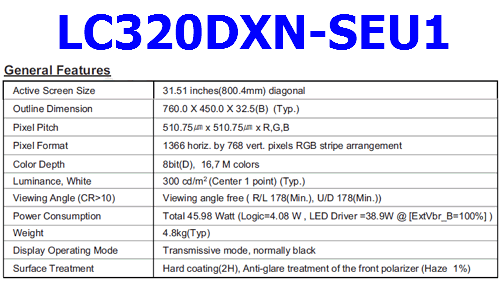

Features

LC320DXN-SEU1 TFT LCD LG
