LM2596HV Datasheet – 3A, Step-Down Voltage Regulator

Part Number: LM2596HV

Function : 3A, Step-Down Voltage Regulator

Package: TO-220(T), TO-263(S) Type

Manufacturer: H&Msemi ( http://www.hmsemi.com )


lm2596hv-voltage-regulator

Description

The LM2596HV series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an ADJ output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator. The LM2596HV series offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in some cases no heat sink is required. A standard series of inductors optimized for use with the LM2596HV are available from several different manufacturers. This feature greatly simplifies the design of switch-mode power supplies.

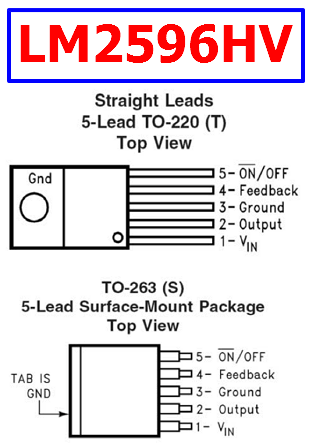

Pinout

lm2596hv-datasheet-pinout



Features

1. 3.3V, 5V, 12V and adjustable output versions

2. Guaranteed 3A output current

3. Adjustable version output voltage range,1.23V to 57V ±4% max over line and load conditions

4. 150 kHz fixed frequency internal oscillator

5. TTL shutdown capability, low power standby mode

6. High efficiency

7. Uses readily available standard inductors

8. Thermal shutdown and current limit protection

9. Wide input voltage range up to 60V

10. Requires only 4 external components
