LM3171 Datasheet PDF – Positive Voltage Regulator – Fairchild

Part Number : LM3171, Correct Part Number : LM317T

Function : 3-Terminal Positive Adjustable Regulator

Package : TO-220 Type

Manufacturers : Fairchild Semiconductor


LM3171 Voltage Regulator

Pinouts :

LM317T datasheet

LM3171 Description :

This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply 2.2A typical of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting, thermal shutdown and safe area compensation.



Features
1. Output-Current In Excess of 2.2 A
2. Output-Adjustable Between 1.2 V and 37 V
3.  Internal Thermal Overload Protection
4. Internal Short-Circuit Current Limiting
5. Output-Transistor Safe Operating Area Compensation



Ordering Information

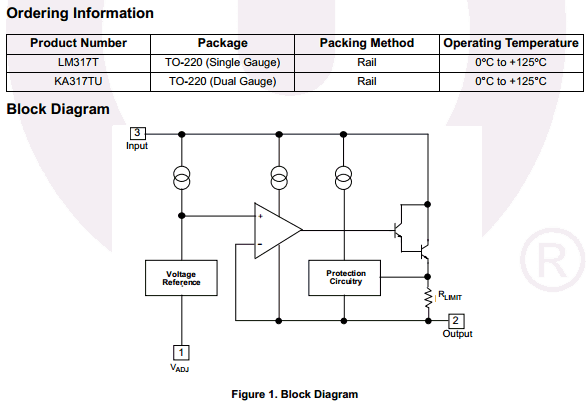

LM317T Block Diagram

LM3171 Datasheet

LM317T pdf

Other data sheets within the file :  KA317, KA317TU, LM317
