LM7809 Datasheet – 1A, 9V, Voltage Regulator – Fairchild

Part Number : LM7809, LM7809CT, LM7809ACT

Function : 3-Terminal 1A Positive Voltage Regulator

Package : TO-220 type

Manufactures : Fairchild


lm7809-voltage-regulator

Description

The LM7809, LM78XX series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

Pinout

lm7809-datasheet-pinout



Features

1. Output Current up to 1A

2. Output Voltages of 9

3. Thermal Overload Protection

4. Short Circuit Protection

5. Output Transistor Safe Operating Area Protection



Application Circuit

application-circuit



LM7809 Specs

electrical-characteristics

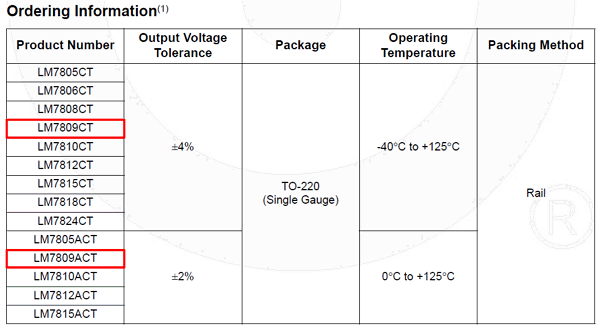

Ordering Information

ordering-information



Official Homepage : https://www.fairchildsemi.com/products/positive-voltage-linear-regulators/LM7809.html
